Different Hatch types:
Suggested co2 Material Settings - Click on material name to show settings.
These parameters are provided as a "general range" and therefore some user testing and experimentation is required.
Individual materials and preference will determine the final combination of settings for each application.
Different Hatch types:
Unidirectional hatch. The hatch lines will be marked from left to right. |
Bidirectional hatch. Hatch lines will be marked from left to right first, and then from right to left. |
Ring like hatch. Fills objects from the outside to the inside like a ring |
Optimization two way hatch. Similar with bidirectional hatch, but the end of each end |
Dashed Hatch Hatch fills the object with perforated hatch lines. |
Suggested co2 Material Settings - Click on material name to show settings.

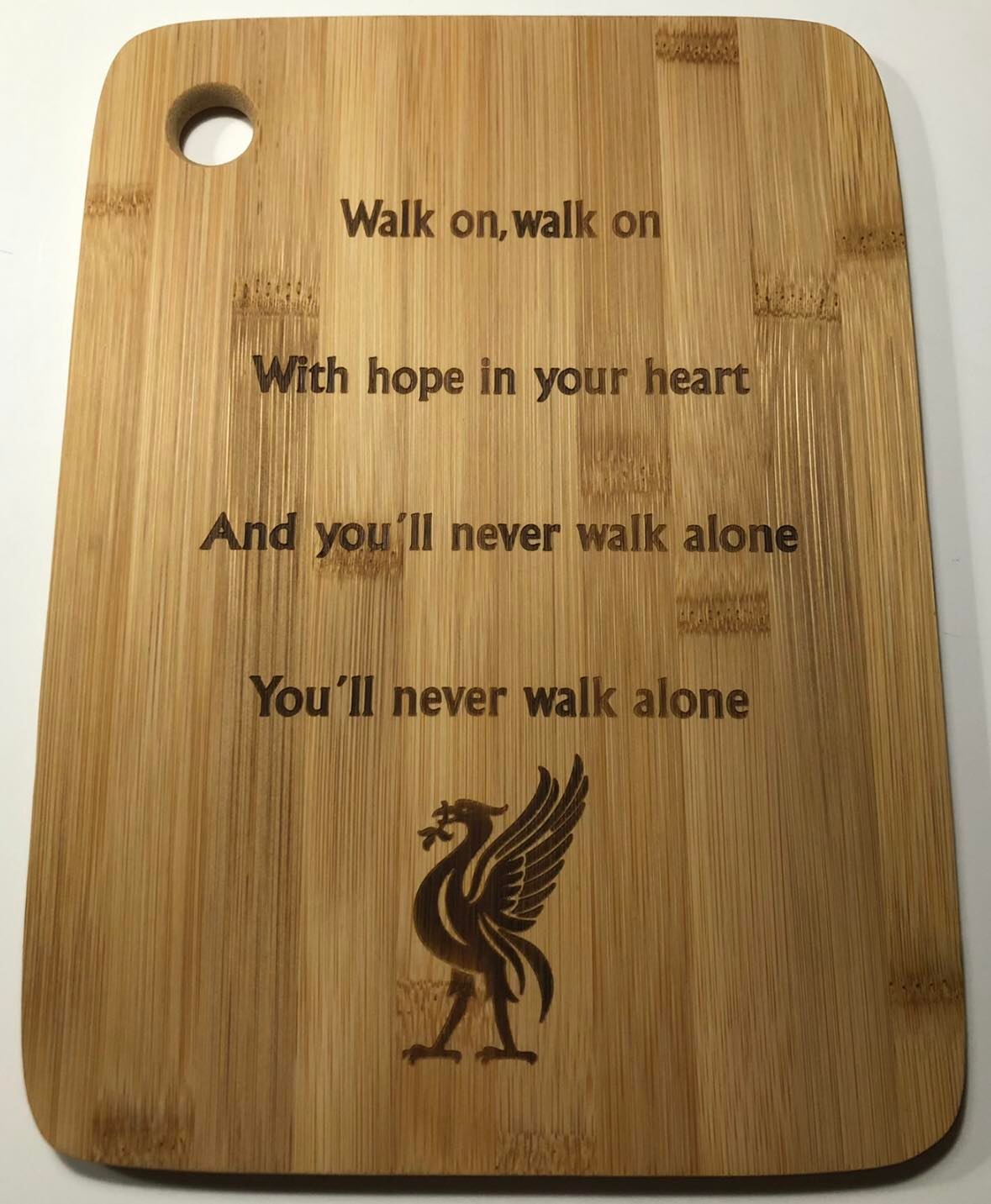

- BAMBUS CUTTING BOARD

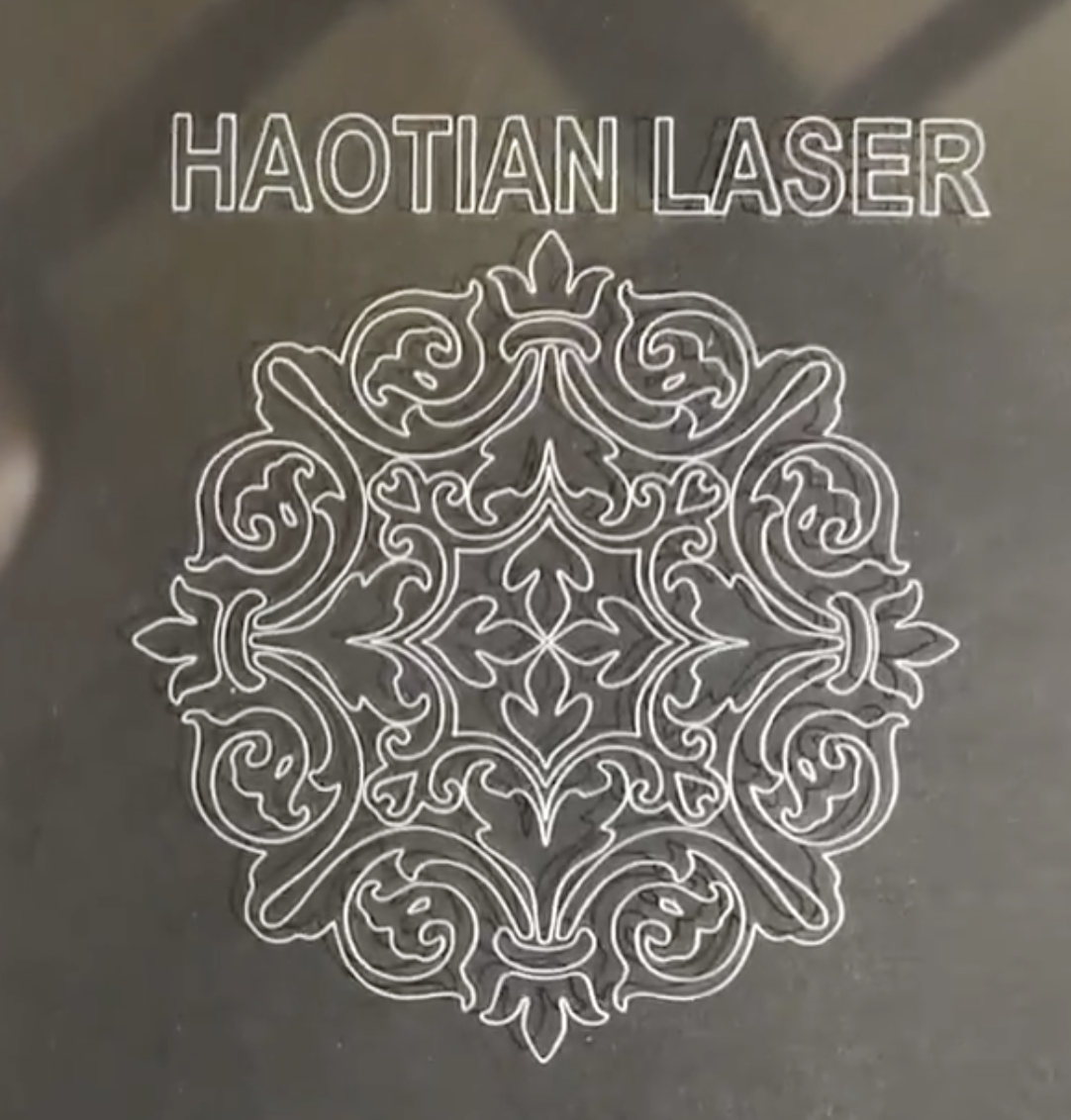

- CLEAR ACRYLIC
- BI-COLOR JDS LEATHERETTES

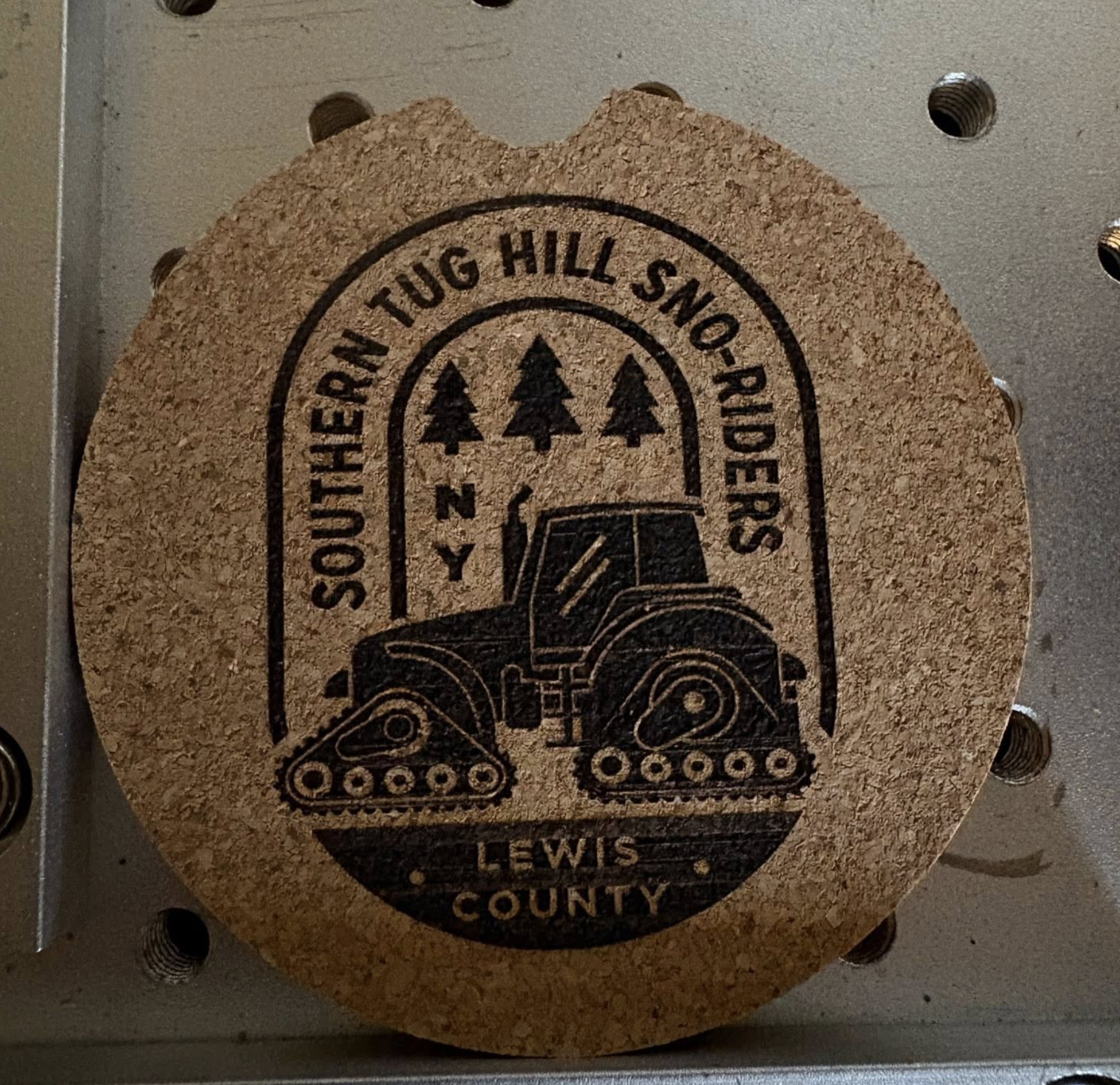

- CORK COASTERS
- JDS LEATHERETTE
- NOTEBOOK PAPER
- POLAR CAMEL
Model | Hatch | Power % | Angle | Speed (mm/s) | Pulse [ns] | Freq | Type | Loop | Line Space | Lens Type | Picture | Notes |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Co2 30W | 1 | 40 | 90 | 600 | 24 | 2 | 0.05 | 210 |
Model | Hatch | Power % | Angle | Speed (mm/s) | Pulse [ns] | Freq | Type | Loop | Line Space | Lens Type | Picture | Notes |
---|---|---|---|---|---|---|---|---|---|---|---|---|
30W galvo | 1 | 60 | 0 | 500 | 0 | 25 | 0.05 | 100 |
Model | Hatch | Power % | Angle | Speed (mm/s) | Pulse [ns] | Freq | Type | Loop | Line Space | Lens Type | Picture | Notes |
---|---|---|---|---|---|---|---|---|---|---|---|---|
60w 20mm Exp. | 1 | 10 | 45 | 500 | 0 | 25 | 1 | .10 | 300 |
Model | Hatch | Power % | Angle | Speed (mm/s) | Pulse [ns] | Freq | Type | Loop | Line Space | Lens Type | Picture | Notes |
---|---|---|---|---|---|---|---|---|---|---|---|---|
60w 20mm Exp. | 1 | 20 | 45 | 1000 | 0 | 25 | 1 | .10 | 300 |
Model | Hatch | Power % | Angle | Speed (mm/s) | Pulse [ns] | Freq | Type | Loop | Line Space | Lens Type | Picture | Notes |
---|---|---|---|---|---|---|---|---|---|---|---|---|
60w 20mm Exp. | 1 | 15 | 45 | 500 | 0 | 25 | 1 | .10 | 300 |
Model | Hatch | Power % | Angle | Speed (mm/s) | Pulse [ns] | Freq | Type | Loop | Line Space | Lens Type | Picture | Notes |
---|---|---|---|---|---|---|---|---|---|---|---|---|
60w 20mm Exp. | 1 | 100 | 45 | 300 | 0 | 25 | 1 | .05 | 300 |
Model | Hatch | Power % | Angle | Speed (mm/s) | Pulse [ns] | Freq | Type | Loop | Line Space | Lens Type | Picture | Notes |
---|---|---|---|---|---|---|---|---|---|---|---|---|
35W co2 | 1 | 80 | 0 | 450 | 0 | 28 | 0.07 | 210 | Project Mark, no x hatch |
